Ubiquiti airFiber 60 LR

Call for Price

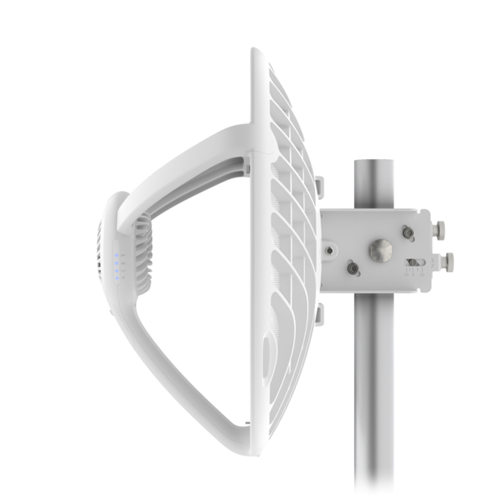

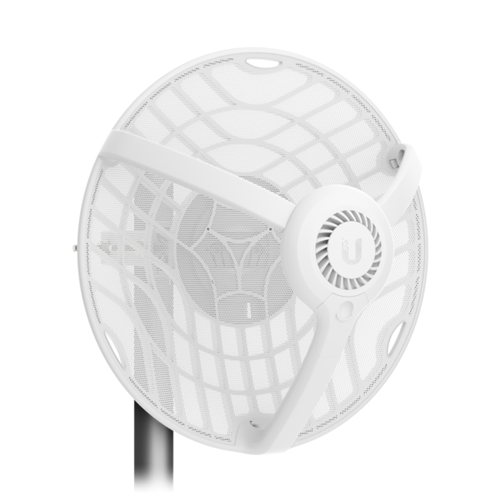

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum. Includes a built-in Bluetooth management radio for easy setup.

Category :

SKU :

SKU: AF60-LR

Additional information

Avalibility:

In Stock

Payment Methods:

Description

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum. Includes a built-in Bluetooth management radio for easy setup.

Specifications

Data transmission
Maximum data transfer rate 1800 Mbit/s
Maximum transfer distance 12000 m
Antenna
Antenna design External
Wireless LAN features
Frequency band 60 GHz
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Frequency band 60 GHz
Ports & interfaces
Ethernet LAN Yes
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 1
Security
Security algorithms AES, WPA2-PSK
Management features
Web-based management Yes
LED indicators LAN
Features
Product type Network bridge
Power LED Yes
Material Aluminium, Polycarbonate (PC)
LED indicators LAN
Internal memory 256 MB
Product colour White
Mounting type Pole
System requirements
Minimum system requirements Modern Web Browser or Android/iOS Smartphone
Power
Power consumption (max) 18 W
Power source type PoE
Power over Ethernet (PoE) voltage 48 V
Operational conditions
Operating temperature (T-T) -40 – 60 °C
Operating relative humidity (H-H) 5 – 95%
Certificates
Certification FCC, IC, CE
Technical details
Material Aluminium, Polycarbonate (PC)
Internal memory 256 MB
Product colour White
Harmonized System (HS) code 85176990
Weight & dimensions
Weight 2.7 kg
Depth 360 mm
Antenna diameter 41.3 cm
Memory
RAM type DDR3
Indication
Power LED Yes
Logistics data
Harmonized System (HS) code 85176990
