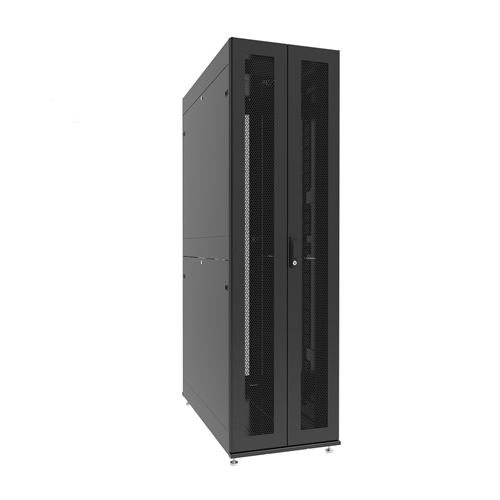

DXL Series Premium Floor-Mount Server Rack – 1500 kg Static Load Capacity

Call for Price

A premium floor-standing server rack (42U/45U variants) supporting up to 1,500 kg static load, made from robust cold-rolled steel, with ventilated mesh front and back doors for optimal airflow and IP20 protection.

Category :

Categories: ,

SKU :

SKU: DXL-P-804212-BK

Brand:

Additional information

Avalibility:

In Stock

Payment Methods:

Description

The DXL Series Premium Floor-Mount Server Rack is engineered for enterprise-grade deployment, offering maximum durability and airflow efficiency. Constructed from SPCC cold-rolled steel with front and rear mesh doors, it meets ANSI/EIA RS‑310‑D and IEC standards for rack compatibility. It provides adjustable feet and optional caster wheels for installation flexibility, IP20 protection, and customizable sizes (42U, 45U, 47U), widths (600 mm or 800 mm), and depths (1000–1200 mm). This rack is ideal for heavy-duty server storage in colocation and data center environments, where support for multiple rack-mounted equipment weighing up to 1.5 tons is required.

Specifications

Series DXL Series Premium Floor-Mount Rack
Static Load Capacity 1500 kg
Compliance ANSI/EIA RS‑310‑D, IEC 297‑2, DIN 41491, ETSI standards
Material SPCC cold-rolled steel (2 mm mounting profiles, 1.2 mm panels)
Height 42U / 45U / 47U
Width 600 mm or 800 mm
Depth 1000 mm / 1100 mm / 1200 mm
Front & Rear Doors Perforated / mesh with locks
Side Panels Removable, optional keyed locks
Cable Access Top/bottom knockouts and floor openings
Airflow & Ventilation Ventilated doors; optional fan modules
Color & Finish Powder-coated (e.g. RAL 9004/9005)
Protection Rating IP20
Mobility Options Castors (optional); adjustable leveling feet included
Cable Management Vertical/horizontal channels, tray options
Use Cases Data centers, colocations, enterprise server environments
