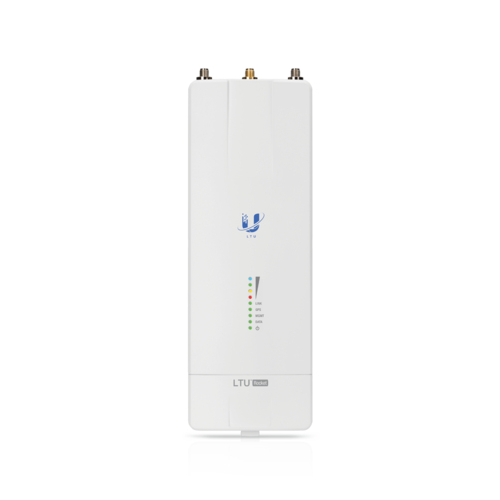

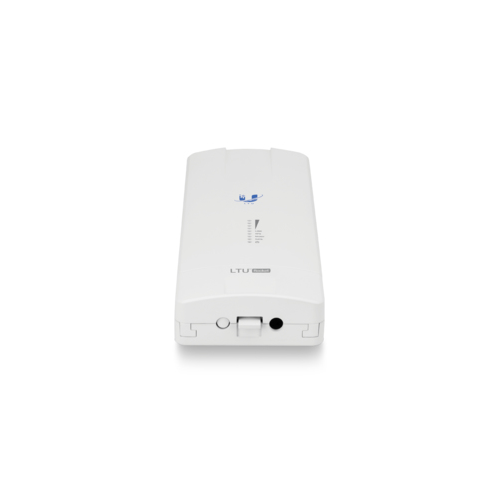

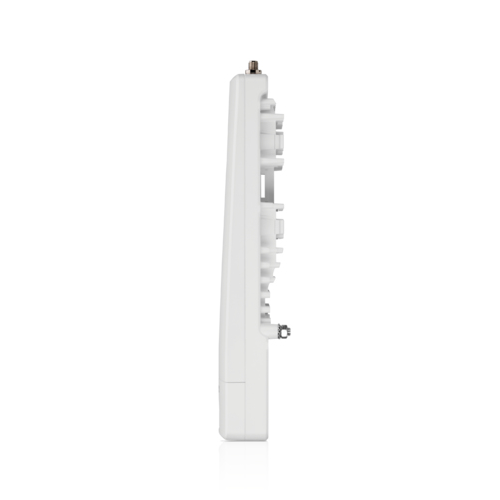

Ubiquiti LTU Rocket 675.84 Mbit/s White

Call for Price

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as ClientsIncorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades. Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

Category :

Categories: ,

SKU :

SKU: LTU-ROCKET

Additional information

Avalibility:

In Stock

Payment Methods:

Description

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as ClientsIncorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades. Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

Specifications

Performance
5 GHz Yes
Maximum data transfer rate 675.84 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 4.9 – 6.2 GHz
Maximum outdoor range 100000 m
Features
5 GHz Yes
Maximum data transfer rate 675.84 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 4.9 – 6.2 GHz
Maximum outdoor range 100000 m
Maximum data transfer rate (5 GHz) 675.84 Mbit/s
Security
Security algorithms WPA2-PSK
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 15 W
AC input voltage 18 – 54 V
Design
Product colour White
Antenna
Antenna type Internal
Technical details
Harmonized System (HS) code 85176990
Weight & dimensions
Width 82 mm
Depth 48 mm
Height 244 mm
Weight 468 g
Operational conditions
Operating temperature (T-T) -40 – 55 °C
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
