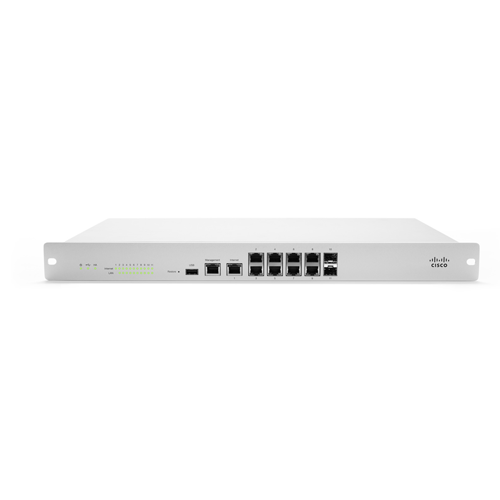

The Meraki MX Series combines comprehensive Unified Threat Management (UTM) capabilities with SD-WAN functionality, enabling exceptional security and smart, redundant inter-site networking. MX is managed through a common dashboard used to manage all Meraki products.
Category :
SKU :
Payment Methods:
The Meraki MX Series combines comprehensive Unified Threat Management (UTM) capabilities with SD-WAN functionality, enabling exceptional security and smart, redundant inter-site networking. MX is managed through a common dashboard used to manage all Meraki products.
– Comprehensive Unified Threat Management
– SD-WAN
– Auto-VPN
| Data transmission | |
|---|---|
| Firewall throughput | 0.75 Gbit/s |
| VPN throughput | 0.5 Gbit/s |
| Firewall throughput | 750 Mbit/s |
| VPN throughput | 500 Mbit/s |
| Network | |
| Maximum outdoor range | 9842.5″ (250 m) |
| Number of users | 500 user(s) |
| Management features | |
| LED indicators | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
| Combo SFP ports quantity | 2 |
| Storage | |
| Storage media type | HDD |
| HDD capacity | 1 TB |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Power | |
| AC input voltage | 100-220 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (typical) | 30 W |
| Peak power | 55 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Weight & dimensions | |
| Weight | 9.04 lbs (4.1 kg) |
| Width | 19″ (483 mm) |
| Depth | 10″ (254 mm) |
| Height | 1.73″ (44 mm) |
| Technical details | |
| Rack mounting | Yes |
| Form factor | 1U |
| Harmonized System (HS) code | 85176990 |
| Hard drive | |
| Storage media type | HDD |
| HDD capacity | 1 TB |
| Other features | |
| Firewall throughput | 750 Mbit/s |
| VPN throughput | 500 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
