Switch Huawei S6730-S24X6Q
Switch Huawei S6730-S24X6Q

Call for Price

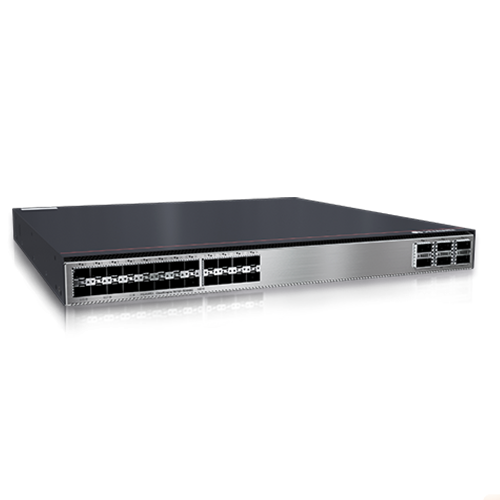

Huawei CloudEngine S6730-S24X6Q is a high-performance 10GE switch featuring 24× 10GE SFP+ ports and 6× 40GE QSFP+ uplinks, ideal for enterprise campus core or data center access with advanced Layer 3 features and intelligent cloud management.

Category :

Categories: ,

SKU :

SKU: S6730-S24X6Q

Brand:

Additional information

Avalibility:

In Stock
Secure Shopping
24/7 Support
Shipping Worldwide

Payment Methods:

Description

The Huawei CloudEngine S6730-S24X6Q is a next-generation 10GE-enhanced Layer 3 switch built for high-performance enterprise campus networks and cloud-ready data center environments. It features 24 × 10GE SFP+ downlink ports and 6 × 40GE QSFP+ uplink ports, offering exceptional throughput and flexibility. These uplinks can also be upgraded to 100GE via a software license, making it future-proof for bandwidth-intensive scenarios. Equipped with dual pluggable AC/DC power supplies, intelligent fan speed control, and air-cooled front-to-rear airflow, the switch is designed for efficient and reliable operation in demanding environments. With support for advanced features such as VXLAN-based network virtualization, QoS, ACL, and stacking via iStack, it enables simplified operations and intelligent O&M. Powered by Huawei’s Versatile Routing Platform (VRP) and cloud-based management, the S6730-S24X6Q is ideal for acting as a core switch in campus networks or an access/aggregation switch in cloud data centers.

Specifications

Model CloudEngine S6730‑S24X6Q
Part Numbers 02353AJW, 02353AJW‑001, 02353AJW‑003, 02353AJW‑004
Fixed Ports 24 × 10 GE SFP+, 6 × 40 GE QSFP+ (upgradeable to 100 GE via license)
Switching Capacity 960 Gbps (chip) / 2.4 Tbps (system)
Forwarding Performance ≈ 480–490 Mpps
Memory (RAM) 4 GB
Flash Memory 2 GB
Power Supply Dual pluggable AC/DC modules (1+1 redundancy)
Input Voltage Range AC: 100–240 V (max 90–290 V);
DC: −48 V to −60 V (max −38.4 V to −72 V)
Typical Power Consumption 135 W (30% load, dual PSU)
Maximum Power Consumption Up to 249 W (100% traffic, max fans, high temp +40 °C)
Heat Dissipation 460.6 BTU/hour (typical)
Heat Dissipation Mode Air-cooled with intelligent fan-speed adjustment
Fans 4 pluggable FAN‑031A‑B modules
Operating Temperature –5 °C to +45 °C at 0–1800 m;
above 1800 m, minus 1 °C per 220 m altitude rise
Storage Temperature –40 °C to +70 °C
Humidity 5% to 95% RH (non‑condensing)
Operating Altitude Up to 5000 m
Weight (with packaging) 8.9 kg
Weight (without packaging) ≈ 5.62 kg (12.4 lb)
Dimensions (H × W × D) 43.6 mm × 442 mm × 420 mm
Chassis Height 1U
Stacking Support Stackable via dedicated stack ports on 10GE/40GE
MTBF ≈ 62.27 years
Availability > 0.99999
Surge Protection AC ports: ±6 kV differential & common mode;
DC ports: ±2 kV differential, ±4 kV common mode
RTC Supported
RPS Input Not supported
PoE Not supported
