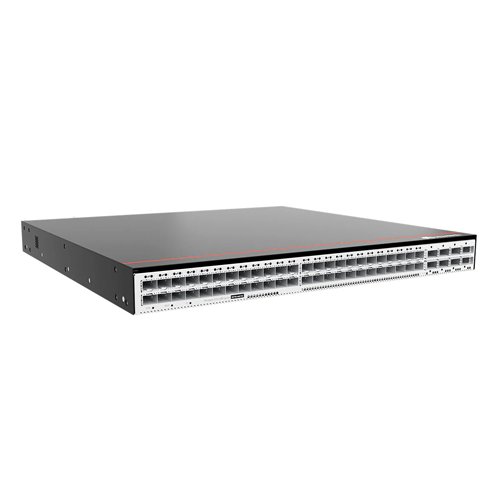

Huawei Switch S6750-H48Y8C

Call for Price

The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports.

Category :

Categories: ,

SKU :

SKU: S6750-H48Y8C

Brand:

Additional information

Avalibility:

In Stock

Payment Methods:

Description

The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation. In addition, the S6700 provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure data centers.

Specifications

Model S6750-H48Y8C
Part Number 02355UEL, 02355UEL-001
Description S6750-H48Y8C (48×25GE SFP28 ports, 8×100GE QSFP28 ports, without power module)
Dimensions without packaging (H × W × D) 43.6 mm × 442.0 mm × 420.0 mm (1.72 in. × 17.4 in. × 16.54 in.)
Maximum dimensions 43.6 mm × 442.0 mm × 446.5 mm (1.72 in. × 17.4 in. × 17.58 in.)
Dimensions with packaging 185.0 mm × 650.0 mm × 550.0 mm (7.28 in. × 25.59 in. × 21.65 in.)
Chassis height 1U
Chassis material Metal
Weight without packaging 6.96 kg (15.34 lb)
Weight with packaging 11.23 kg (24.76 lb)
Typical power consumption 223 W (30% traffic, dual power modules)
Typical heat dissipation 760.90 BTU/hour (30% traffic, dual power modules)
Maximum power consumption 244 W (100% traffic), 342 W (at 45°C)
Maximum heat dissipation 832.55 BTU/hour (100% traffic), 1166.94 BTU/hour (at 45°C)
Static power consumption 172 W
MTBF 29.72 years
MTTR 2 hours
Availability > 0.99999
Noise (acoustic power) 58.4 dB(A)
Noise (acoustic pressure) 57.2 dB(A)
Number of card slots 0
Number of power slots 2
Number of fan modules 5
Redundant power supply 1+1
Power module support Pluggable AC and DC modules supported together
Operating temperature –5°C to +45°C (23°F to 113°F)
Temperature derating with altitude -1°C per 220 m above 1800 m
Startup temperature ≥ 0°C (32°F)
QSFP-100G-ER4 operating temperature –5°C to +40°C (23°F to 104°F)
Storage temperature –40°C to +70°C (–40°F to +158°F)
Operating humidity 5% to 95% RH (non-condensing)
Operating altitude 0–5000 m (0–16404 ft.)
Storage altitude 0–5000 m (0–16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage 100–240 V AC (50/60 Hz), 240 V DC, –48 to –60 V DC
Input voltage range 90–290 V AC (45–65 Hz), 190–290 V DC, -38.4 to -72 V DC
Maximum input current Depends on power module used
Memory 8 GB
Flash memory 4 GB
Console port RJ45
Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection
Power surge protection AC: ±6 kV (diff/common), DC: ±2/±4 kV
Ingress protection level IP20
Fan type Pluggable
Cooling method Air cooling with intelligent fan speed
Airflow direction Front-to-rear
PoE Not supported
Certifications EMC, Safety, Manufacturing
