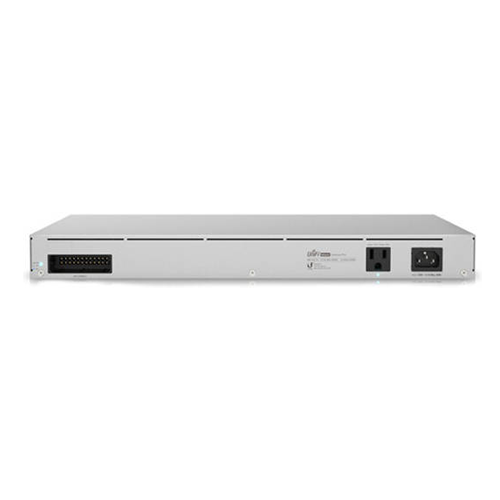

Ubiquiti UniFi UXG-Pro Next Generation Secure Gateway, 1.3″ Touchscreen, 1.7GHz Quad-Core, Gigabit Ethernet, 10G SFP+ WAN Ports, DPI, IPS/IDS & Layered Firewall, Rackmount Design, Silver | UXG-Pro

Call for Price

The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.

Category :

Category:

SKU :

SKU: UXG-PRO

Additional information

Avalibility:

In Stock

Payment Methods:

Description

The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).

Specifications

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)
Weight 3.4 kg (7.5 lb)
Enclosure material Front panel: aluminum CNC
Top cover/base: SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Networking interface LAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
WAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
Power method US:
(1) Universal AC input, 125V AC, 2.7A Max., 60 Hz
(1) RPS DC input, 11.5V DC, 2.87A
Worldwide:
(1) Universal AC input, 200–240V AC, 1.7A Max., 50/60 Hz
(1) RPS DC input, 11.5V DC, 2.87A
Power supply AC/DC, internal, 50W
Max. power consumption 30W
ESD/EMP protection Air: ±15kV, contact: ±8kV
LCM display (1) 1.3″ touchscreen
Button Factory reset
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, and ad filtering

VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking License-free SD-WAN*

WireGuard, L2TP and OpenVPN server

OpenVPN client

OpenVPN and IPsec site-to-site VPN

One-click Teleport* and Identity Enterprise VPN**

Policy-based WAN and VPN routing

DHCP relay

Customizable DHCP server

IGMP proxy

IPv6 ISP support
